Description

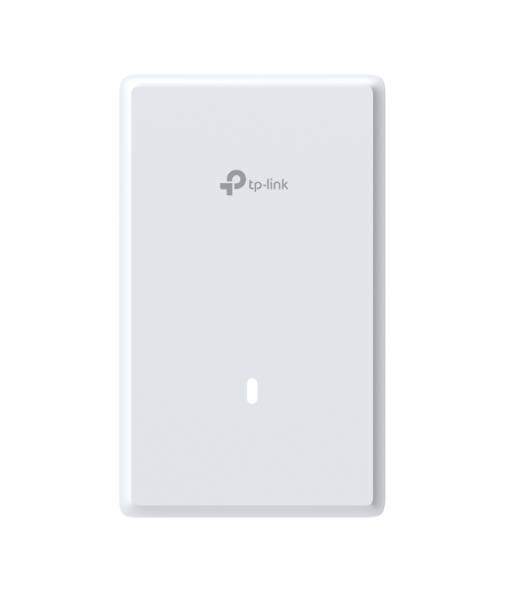

Kami jual Omada EAP725-Wall dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Omada EAP725-Wall dengan menghubungi sales kami disini. Kami juga jual produk wireless access point lainnya baik dari Omada ataupun merk lain, klik disini untuk pilihan produk Wireless Access Point lainnya. Berikut penjelasan singkat mengenai Omada EAP725-Wall atau untuk informasi datasheet bisa download disini.
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada EAP725-Wall creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Specification;
| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP’s downstream device exceeds 7W, the AP needs an 802.3bt input.) |
|---|---|
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Screws included) |
| Coverage | 50 ㎡ (600 ft²)** |
|---|---|
| Concurrent Clients | 250+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 22 dBm (2.4 GHz) < 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
